Bezel, Shifter: Removal

Courtesy of CHRYSLER GROUP, LLC

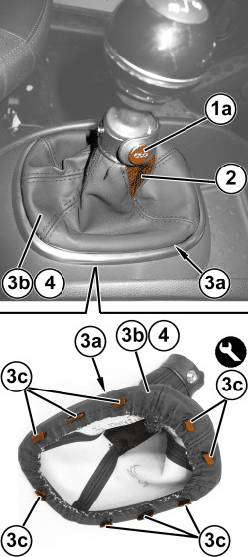

Unfasten the button (1a).
Disconnect the Velcro fabric (2).
With the use of a trim stick or equivalent lift the outer part (3a) of the boot (3b) and release the lower retainers (3c).

Courtesy of CHRYSLER GROUP, LLC

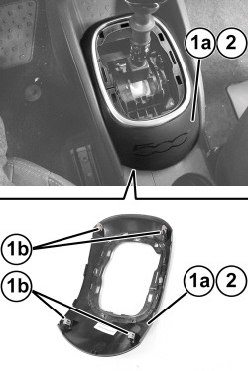

Lift the bezel (1a) releasing the inner retainers (1b).
Raise the shifter bezel (1a) over the shifter handle.

Courtesy of CHRYSLER GROUP, LLC

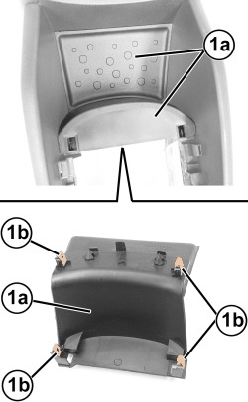

If front console trim removal is necessary, lift upwards on trim (1a) releasing it from its retaining clips (1b).
