Antenna, Satellite: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the antenna mast.
  3. Remove the headliner. Refer to HEADLINER, REMOVAL .

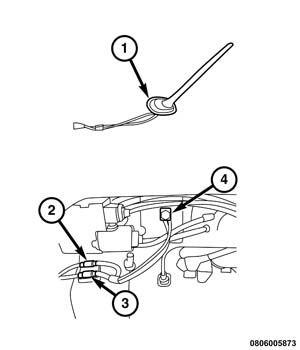

    GC0158978Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the antenna wiring harness connectors (2 and 3).
  5. Remove the nut (4) securing the antenna.
  6. Pull the antenna assembly (1) from the roof of the vehicle.
