Bezel, Instrument Panel, Driver Side: Removal

  1. Remove the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .
  2. Remove steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
  3. Remove the steering column gap hider. Refer to GAP HIDER, STEERING COLUMN SHROUD, REMOVAL .

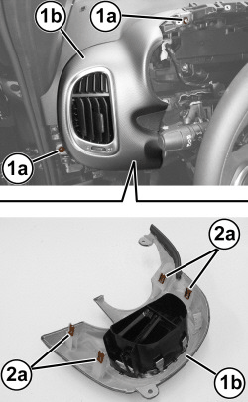

    GC0184316Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (1a) from the driver side instrument panel bezel (1b).
  5. Using a trim stick or equivalent, release the driver side instrument panel bezel (2a) retaining clips.
  6. Remove the driver side instrument panel bezel (1b) from the vehicle.
