Gap Hider, Steering Column Shroud: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the steering column shroud. Refer to SHROUD, STEERING COLUMN, UPPER, REMOVAL .

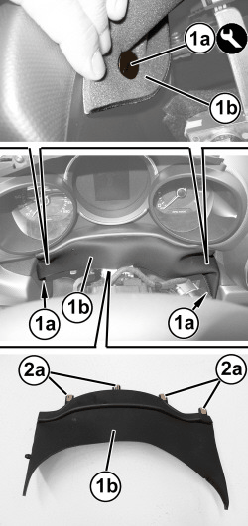

2. Using a trim stick or equivalent, release the push fastener (1a).
3. Release the retainers (2a) and remove the gap hider (1b).
