Reservoir, Windshield Washer: Removal: Reservoir

Courtesy of CHRYSLER GROUP, LLC

1. Turn the steering wheel to move the front wheels to the full left position.
2. Disconnect and isolate the negative battery cable.
3. Remove the filler neck from the washer reservoir. Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL .
4. Raise and support the vehicle.
5. Remove the left front wheel house splash shield from the vehicle. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .

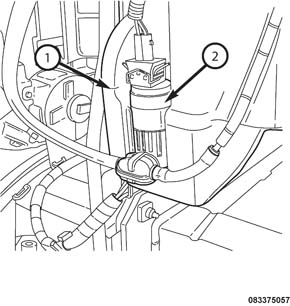

6. Using hand pressure, firmly grasp and pull the washer pump (2) upward far enough to disengage the pump inlet nipple from the rubber grommet seal/filter screen in the reservoir (1). Care must be taken not to damage the reservoir.
7. Remove the rubber grommet seal from the washer pump mounting hole in the reservoir and discard.
8. Disengage the front and rear washer hoses from the integral troughs on the outboard side of the reservoir and position aside.

   Courtesy of CHRYSLER GROUP, LLC

9. Use a drill to remove the two blind rivets (2) that secure the washer reservoir (1) to the outboard side of the left front support structure.
10. Remove the reservoir from the wheel house.
