Shield, Splash, Rear Wheelhouse: Removal

Courtesy of CHRYSLER GROUP, LLC

Right side shown in the illustration, left side typical.

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the wheel. Refer to REMOVAL .

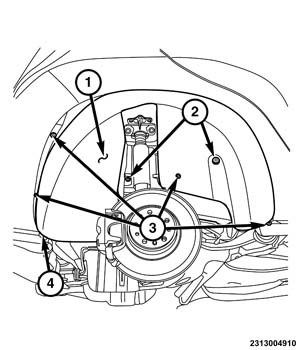

3. Remove the rear fascia fasteners (3) securing the rear splash shield (1).
4. Remove the plastic nuts (2) securing the rear splash shield (1).
5. Disengage the retaining tab (4) securing the splash shield (1) to the rear fascia.
6. Remove the rear splash shield (1) from the vehicle.
