Grille, Lower: Removal

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - STANDARD

1. Remove the fascia. Refer to FASCIA, FRONT, REMOVAL .
2. Remove the fog lights. Refer to LAMP, FOG, REMOVAL .

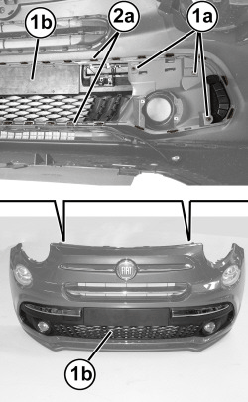

3. Working from the inside of the fascia, remove the six screws (la) attaching the lower grille (lb).
4. Release the various perimeter retainers (2a) then remove the lower grille (1b).

Courtesy of CHRYSLER GROUP, LLC

REMOVAL - TREKKING

1. Remove the fascia. Refer to FASCIA, FRONT, REMOVAL .

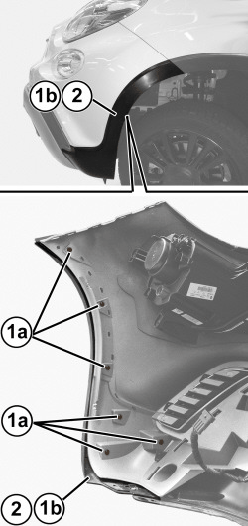

2. Undo the bottom attaching screw (1a) of the molding (1b).

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the molding (lb) attaching screws (la).
4. Remove the molding (1b) releasing its inner retainers.

   Courtesy of CHRYSLER GROUP, LLC

5. Release the various wiring (1e) retainers (1b) from the grille (1a).
6. Remove the screws (2a) which attach the grille (1a) to the fascia.
7. Release the various perimeter retainers (3a) of the grille (1a) from the fascia.

   Courtesy of CHRYSLER GROUP, LLC

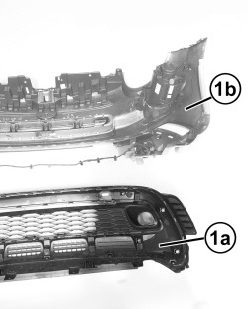

8. Separate the grille (la) from the fascia (lb).

   Courtesy of CHRYSLER GROUP, LLC

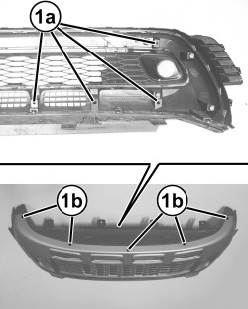

9. If necessary, remove the inside screws (1a) and bottom screws (1b) of the grille.

   Courtesy of CHRYSLER GROUP, LLC

10. Separate the two parts of the grille.
11. Remove the air dam if necessary. Refer to AIR DAM, FRONT, REMOVAL .
