Air Dam, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the four front fascia fasteners (1) from the front fascia (2).
Lower the fascia (2) slightly.

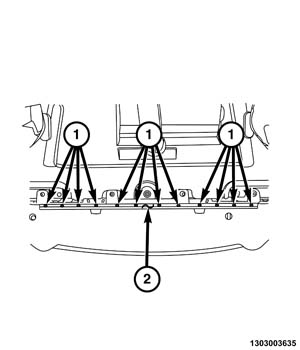

Courtesy of CHRYSLER GROUP, LLC
With the use of a flat bladed tool and pliers, remove the staple type fasteners (1) from the front air dam (2).
Remove the front air dam (2) from the front fascia.
