Lower Center-Courtesy Lamp

  1. Disconnect and isolate the negative battery cable.
  2. Remove media hub. Refer to MEDIA HUB, REMOVAL .

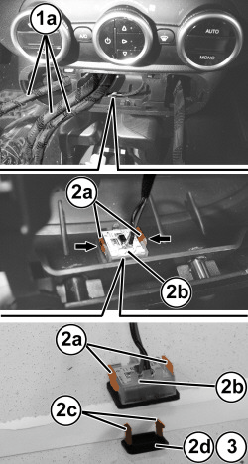

    GC0184228Courtesy of CHRYSLER GROUP, LLC
  3. Move aside the wire harnesses (1a) for the media hub.
  4. Release the opposing retainers (2a) for the LED lamp (2b) and disengage from the outer bezel retainers (2c).
  5. Remove the outer bezel (2d).

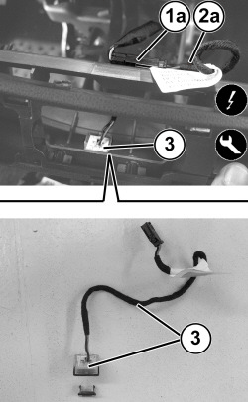

    GC0184184Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the wire harness electrical connector (1a).
  7. Detach the wire harness retainer (2a) and remove lamp and wiring assembly (3).
