Lamp, Courtesy: Removal: CUPHOLDER

  1. Disconnect and isolate the negative battery cable.
  2. Remove center floor console. Refer to BODY/INTERIOR/CONSOLE, CENTER/REMOVAL .

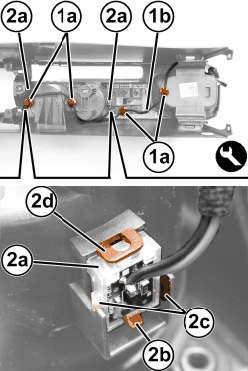

    GC0184248Courtesy of CHRYSLER GROUP, LLC
  3. Working on lower side of console, disengage the wire harness retainers (1a).
  4. Disengage the retainer (2b) then (2c) and lastly (2d).
  5. Remove the LED lights (2a) with wiring harness (1b).
