Module, Tire Pressure Monitoring (TPM): Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove rear fascia. Refer to FASCIA, REAR, REMOVAL .

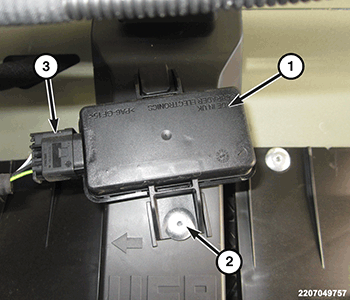

2. Disconnect wiring harness connector (3) at the Tire Pressure Module (1).
3. Drill out mounting rivet (2), then remove the Tire Pressure Module (1) from the body.
