Switch, Clutch Starter Interlock: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the pedal bracket assembly from the vehicle and place on a bench. Refer to PEDAL AND PAD, CLUTCH, REMOVAL .

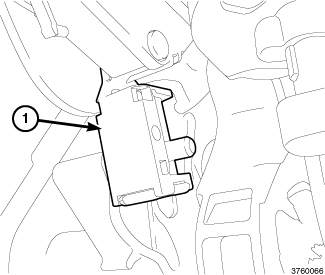

- Depress and hold the clutch pedal to allow access to the external sensor lever (1).

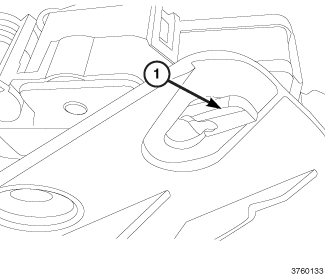

- Unlock the lever by pulling the locking tab (1) down.

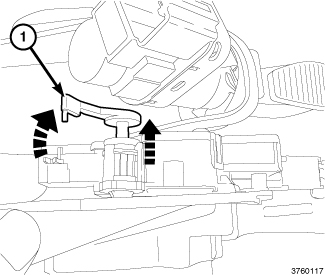

- Swing the lever (1) up until it snaps into place, release the clutch pedal.

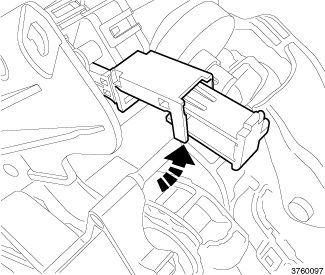

- Carefully pull up on the retention lever (1) to unlock the rivet from the pedal assembly.
- Disengage the locating tab (1) from the pedal assembly and remove the switch.
