Reinforcement, Bumper, Rear: Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Base model shown in the illustration, other models typical unless noted.

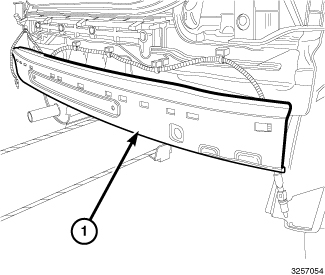

With the aid of an assistant, position the bumper reinforcement (1).

Courtesy of CHRYSLER GROUP, LLC
Install the fasteners securing the bumper reinforcement (1). Tighten the fasteners to 45 N-m (33 ft. lbs.). Repeat for the opposite side.
Install the rear fascia. Refer to FASCIA, REAR, INSTALLATION .
