Panel, C-Pillar Trim: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the B-pillar trim. Refer to PANEL, B-PILLAR TRIM, REMOVAL .
- Remove the seat belt anchor at the rear seat. Refer to RETRACTOR, SEAT BELT, REMOVAL .
- Remove the rear shelf.

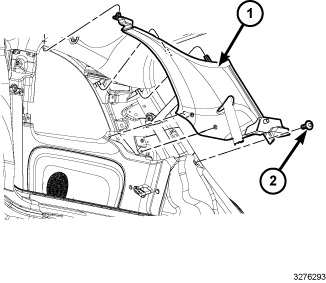

- Remove the fastener (2) located under the rear shelf bracket.
- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the lower retaining clips.
- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the front upper retaining clip located near the upper B-pillar area.
- Slide the C-pillar (1) downward to disengage the rear upper retaining clips.
- Remove the seat belt by pulling through the opening the C-pillar trim panel (1) and remove the trim panel.
