Handle, Exterior: Removal

WARNING: This page is about a different variant/trim than selected.

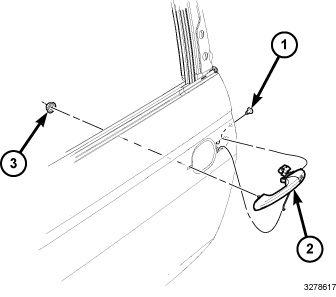

GC0153236Courtesy of CHRYSLER GROUP, LLC
  1. Roll up window.
  2. Remove the door trim panel and watershield. Refer to PANEL, DOOR TRIM, REMOVAL  and WATERSHIELD, DOOR, REMOVAL .
  3. Detach the rod from the door latch.
  4. Remove the nut (3) from the handle assembly (2).
  5. Remove the screw (1) from the handle assembly (2).
  6. Remove the handle assembly (2) from the door and disconnect the wiring harness.
