Seat Back, Front: Installation

NOTE:

Before proceeding with the following procedure, review all Warnings and Cautions. Refer to WARNING  .

NOTE:

Passenger seat shown. Driver seat similar.

GC0158625Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the seat back cushion and cover onto the seat back frame. Refer to SEAT BACK, FRONT, ASSEMBLY .
  2. Position the seat back cushion, cover and frame (1) to the seat bottom frame.
    WARNING:

    Do not reuse the bolts that secure the seat back frame to the seat. Always discard and replace the seat back bolts with new bolts. Reinstalling the original bolts may result in the seat back becoming loose after repair. Failure to follow these instructions may result in serious or fatal injury.

  3. Align the seat back frame (1) to the seat bottom frame and install four new retaining bolts (2). Tighten the bolts to 40 Nm (30 lbf-ft).
  4. Position the seat belt buckle (4) and install the fastener (3).
  5. Tighten the seat belt buckle fastener (3) to 40 Nm (30 lbf-ft).
    GC0158788Courtesy of CHRYSLER GROUP, LLC
  6. Fasten the seat wiring harness routing clips (2).
  7. Connect the seat back wiring guide (1).

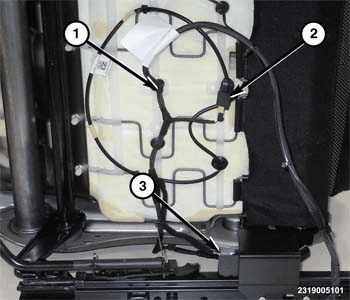

    GC0158599Courtesy of CHRYSLER GROUP, LLC
  8. From the bottom of the seat, fasten the seat wiring harness routing clips (1).
  9. Connect the seat track position sensor wiring connector (3).
  10. Connect the occupant detection sensor wiring connector (2).
  11. Connect the heated seat wiring harness connector, when equipped with heated seats. Refer to PAD, HEATER, DESCRIPTION .
    GC0158968Courtesy of CHRYSLER GROUP, LLC
  12. Position the inboard side cover (1) to the seat and engage the inner retainers by moving it down and rearward.
  13. Install the fasteners (3) into the rear of the inboard side cover (1) and tighten securely.
  14. Install the fasteners (2) into the inboard side cover (1) and tighten securely.
  15. Align and insert the fastener covers into the side cover.
    GC0158839Courtesy of CHRYSLER GROUP, LLC
  16. Move the outboard side cover (1) down and rearward, engaging it to the seat.
  17. On the front inner of the side cover (1), inspect the side cover clip (2) to be certain it is fully engaged.
    GC0158842Courtesy of CHRYSLER GROUP, LLC
  18. Position the recliner lever (1) and the height adjuster lever (2).
  19. Install the fasteners (3 and 5) into the height adjuster lever (2) and the recliner lever (1). Tighten the fasteners securely.
  20. Install the fastener (4) into the rear of the side cover and tighten securely.
  21. Align and insert the fastener covers into the recliner lever (1) and height adjuster lever (2).
  22. Install the front seat. Refer to INSTALLATION  .
