Carrier, Instrument Panel: Installation

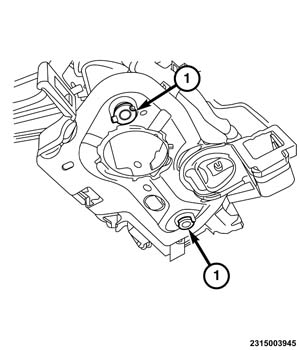

GC0158864Courtesy of CHRYSLER GROUP, LLC
  1. Locate the instrument panel carrier centering bushings (1) located on both ends of the instrument panel carrier.
    NOTE:

    The resetting of the instrument panel carrier centering bushings allows the bushings to re-center in order to permit them to recover the clearances while mounting the instrument panel carrier to the body using the side bolts.

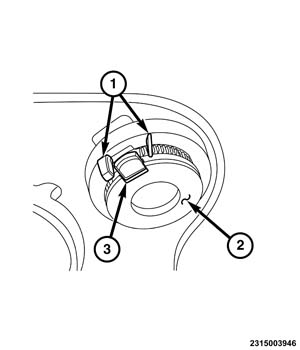

    GC0159087Courtesy of CHRYSLER GROUP, LLC
  2. Fully tighten the instrument panel carrier centering bushings until the reference element fits between the two retainers.
    NOTE:

    Inspect the centering bushings and replace if necessary.

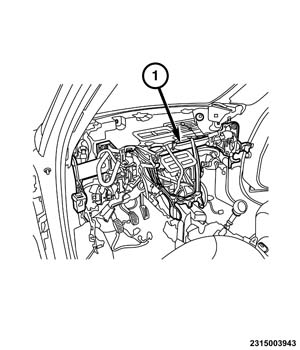

    GC0158860Courtesy of CHRYSLER GROUP, LLC
  3. With the help of an assistant, one person on each side of the vehicle, position the instrument panel carrier into the vehicle.
    NOTE:

    Make sure that all wiring harnesses are routed properly and are not pinched when installing the instrument panel carrier.

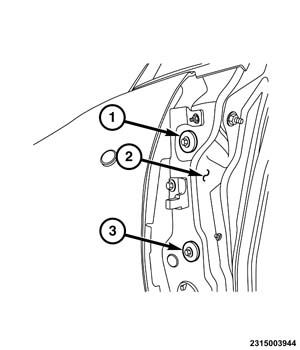

    GC0158653Courtesy of CHRYSLER GROUP, LLC
  4. Insert the instrument panel carrier side bolts into the hinge pillars.
  5. Tighten the side bolts gradually, alternating from lower right to upper left and vice versa, repeatedly. This will allow the centering bushings to recover the clearances between the instrument panel carrier and the body correctly.
  6. Once all four bolts are secured, tighten fully to 20 Nm (15 lbf-ft).

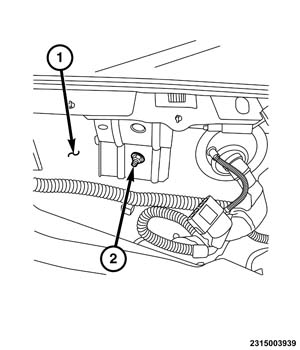

    GC0158971Courtesy of CHRYSLER GROUP, LLC
  7. Install the instrument panel carrier fastener (2) into the lower plenum (1).
  8. Tighten the fastener (2) to 20 Nm (15 lbf-ft).
  9. Install the wiper assembly. Refer to LINKAGE, WIPER ARM, INSTALLATION .
  10. Install the cowl panel cover. Refer to COVER, COWL PANEL, INSTALLATION .

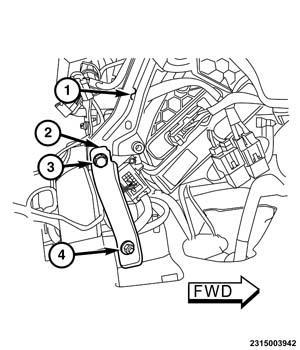

    GC0158754Courtesy of CHRYSLER GROUP, LLC
  11. Install the upper fastener (3) into the bracket (2), securing the instrument panel carrier (1) to the floor tunnel.
  12. Tighten the upper fastener (3) to 15 Nm (11 lbf-ft).
  13. Install the lower fastener (4) into the bracket (2).
  14. Tighten the lower fastener (4) to 8 Nm (71 lbf-in).

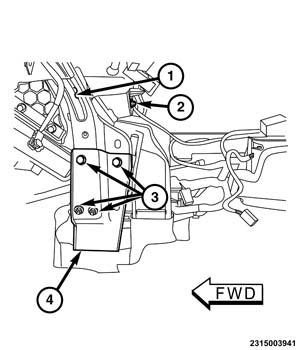

    GC0159132Courtesy of CHRYSLER GROUP, LLC
  15. Install the fasteners (3) into the bracket (4), securing the instrument panel carrier (1) to the floor tunnel.
  16. Tighten the fasteners (3) to 15 Nm (11 lbf-ft).
  17. Install the fastener (2) securing the HVAC housing to the instrument panel carrier (1).
  18. Tighten the lower fastener (2) securely.

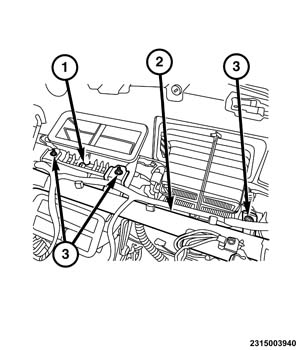

    GC0158954Courtesy of CHRYSLER GROUP, LLC
  19. Install the upper fasteners (3) securing the HVAC housing (1) to the instrument panel carrier (2).
  20. Tighten the upper fastener to 20 Nm (15 lbf-ft).

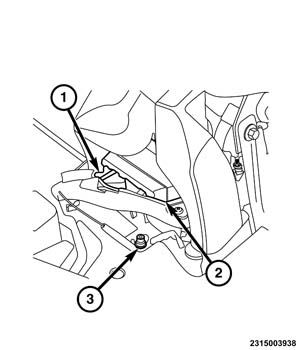

    GC0159019Courtesy of CHRYSLER GROUP, LLC
  21. Connect the wiring connector (1) to the air bag module (2).
  22. Position the ground wires and install the fastener (3). Tighten the fastener (3) to 8 Nm (71 lbf-in).

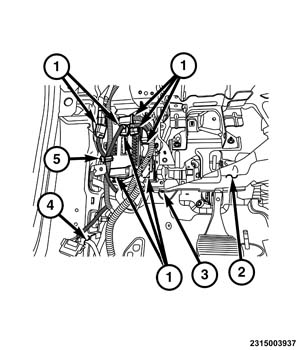

    GC0158814Courtesy of CHRYSLER GROUP, LLC
  23. Position the wiring harness into the routing clip (5) and fasten the retaining clip.
  24. Position the ground strap (4) and install the fasteners and tighten to 8 Nm (71 lbf-in).
  25. Connect the wiring connectors (1).
  26. Position the driver side floor air duct (2).
  27. Install fastener (3) and tighten securely.
    GC0158780Courtesy of CHRYSLER GROUP, LLC
  28. Position the driver side cowl/scuff trim panel (1).
  29. Install the fastener (2) and tighten securely.
    GC0159034Courtesy of CHRYSLER GROUP, LLC
  30. Align the hood release handle (1) and with the use of hand pressure install fully.

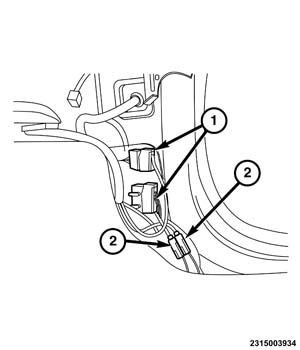

    GC0159076Courtesy of CHRYSLER GROUP, LLC
  31. Connect the coaxial cable connections (2).
  32. Connect body harness wiring connectors (1).

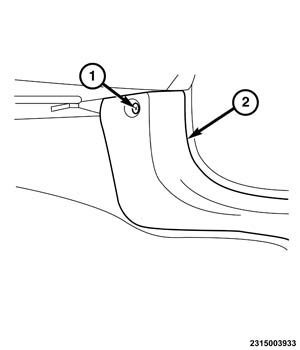

    GC0158998Courtesy of CHRYSLER GROUP, LLC
  33. Position the passenger side cowl/scuff trim panel (2).
  34. Install the fastener (1) and tighten securely.
    GC0158598Courtesy of CHRYSLER GROUP, LLC
  35. Install the instrument panel. Refer to PANEL, INSTRUMENT, INSTALLATION .
  36. Install the front doors. Refer to DOOR, INSTALLATION .
