Cover(S), Engine Timing: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL .
    GC0176791Courtesy of CHRYSLER GROUP, LLC

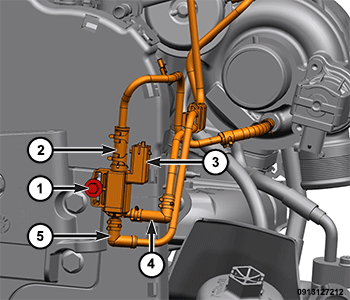

  3. Remove the bolt (1) and position aside the turbocharger wastegate solenoid (3).
    GC0155975Courtesy of CHRYSLER GROUP, LLC
  4. Disengage the following retainers from the upper timing belt cover (1):
    • Evaporative emissions purge hose (4).
    • After run coolant pump return hose (3).
    • Wastegate solenoid pressure inlet hose (2).
    GC0152466Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolts (2 and 3) and the upper timing belt cover (1).
  6. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  7. Remove the right front wheel and tire assembly. Refer to REMOVAL .
  8. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE .
  9. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .
  10. Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL .
    GC0152464Courtesy of CHRYSLER GROUP, LLC
  11. Remove the bolt (2) and the lower timing belt cover (1).
    GC0152659Courtesy of CHRYSLER GROUP, LLC
  12. Remove the bolt (2) and the side timing belt cover (1).
