Body, Air Cleaner: Removal

  1. Remove the engine cover .

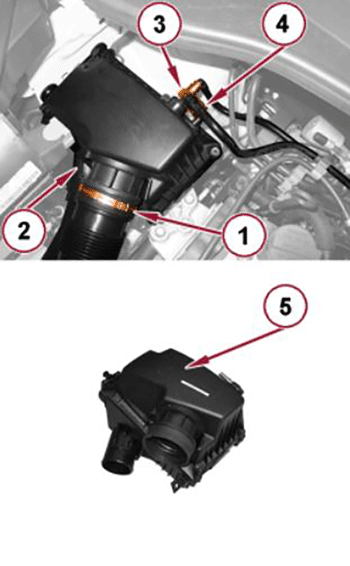

    GC0176816Courtesy of CHRYSLER GROUP, LLC
  2. Loosen the band clamp (1) and disconnect the turbocharger air delivery pipe from the air cleaner body cover.
  3. Disconnect the air inlet hose (2) from the air cleaner body.
  4. Disconnect the quick coupling for the air pipe (3).
  5. Disconnect the quick coupling for the fuel vapor pipe (4).
  6. Lift the air cleaner body (5) off of the mount grommets.

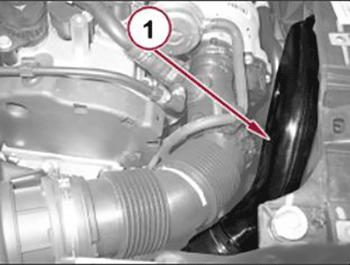

    GC0176809Courtesy of CHRYSLER GROUP, LLC
  7. If required, remove the screws and remove the air inlet hose (1).

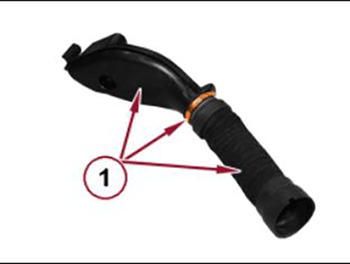

    GC0176828Courtesy of CHRYSLER GROUP, LLC
  8. If required, loosen the band clamp and separate the air inlet hose (1).
