Bracket, Engine Mount, Right: Installation

Courtesy of CHRYSLER GROUP, LLC

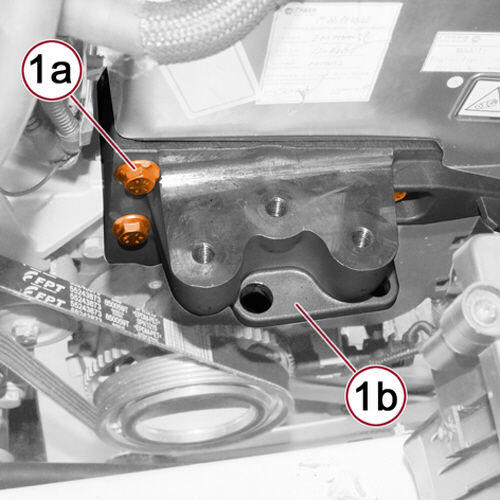

1. Install the right engine mount bracket (1b) and tighten the bolts (1a) to 25 N.m (18 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the upper timing belt cover (1) with two bolts (2 and 3) tightened to 9 N.m (80 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

3. Engage the following retainers to the upper timing belt cover (1):
   • Wastegate solenoid pressure inlet hose (2).
   • After run coolant pump return hose (3).
   • Evaporative emissions purge hose (4).

   Courtesy of CHRYSLER GROUP, LLC

4. Position the turbocharger wastegate solenoid (4). Install the bolt (5) and tighten to 9 N.m (80 in. lbs.).
5. Install the right engine mount. Refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
6. Connect the battery negative cable and tighten the nut to 5 N.m (45 in. lbs.).
