Media Hub: Description

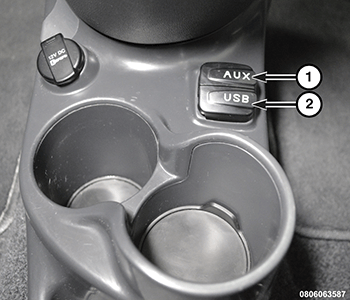

The media hub is located in the floor console.
NOTE:
The four retaining tabs on the back of the media hub must be compressed for removal
Refer to MEDIA HUB, REMOVAL .
The media Hub is a centralized connection point on the vehicle that contains:
- USB port (2)
- 3.5 mm auxiliary input jack (1)
NOTE:
The USB port provides 5 volts at 1.5 amps to charge the media device battery.
For further information, refer to the Uconnect Access User's Manual.
