Disconnect and isolate the negative battery cable.
Courtesy of CHRYSLER GROUP, LLC
Using a suitable tool, release the retaining tabs on the media hub (1) that secure it to the center console. Lift the media hub out of the center console.
Courtesy of CHRYSLER GROUP, LLC

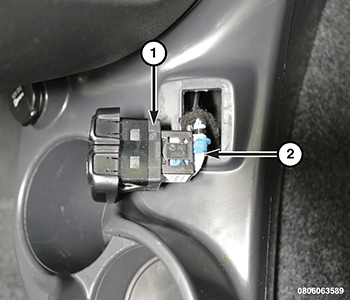

Disconnect the wire harness connector (2) and remove the media hub.
