Cable, Shift: Removal

WARNING: This page is about a different variant/trim than selected.

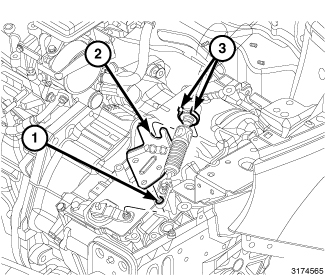

GC0153005Courtesy of CHRYSLER GROUP, LLC
  1. Remove battery tray. Refer to REMOVAL .
  2. Disconnect the shift cable (1) from the manual shift lever.
    NOTE:

    Inspect the retention clip for cracks, wear or damage, replace as necessary.

  3. Disconnect the shift cable from the bracket (2) by holding the tabs (3) and squeezing together, walk the cable out of the bracket.
  4. Remove the shifter assembly. Refer to REMOVAL  .

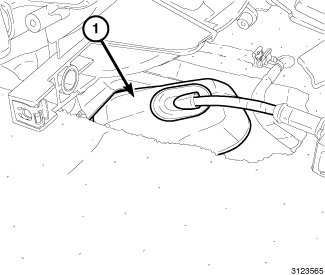

    GC0152805Courtesy of CHRYSLER GROUP, LLC
  5. Unseat the shifter cable grommet (1) then push through the floor.
  6. Raise the vehicle.

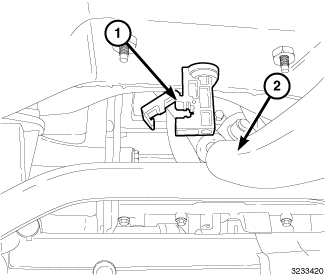

    GC0153084Courtesy of CHRYSLER GROUP, LLC
  7. Remove the shifter cable (2) from the retaining clip (1).
  8. Reposition the heat shield to allow for the removal of the cable.
  9. Remove the cable from the vehicle.
