Tray, Battery: Removal

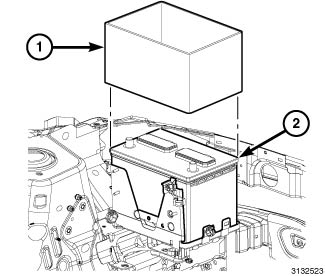

GC0152855Courtesy of CHRYSLER GROUP, LLC
  1. Remove the battery (2). Refer to REMOVAL  .

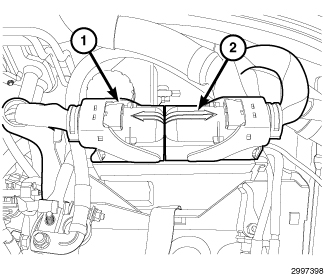

    GC0152393Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the powertrain control module (PCM) electrical connectors (1 and 2).

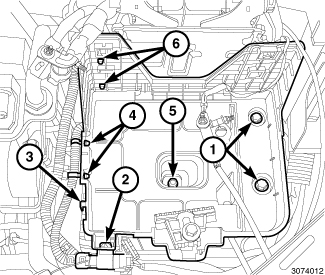

    GC0152563Courtesy of CHRYSLER GROUP, LLC
  3. Disengage two starter wire harness retainers (6) from the battery tray (3).
  4. Disengage two engine wire harness retainers (4) from the battery tray (3).
  5. Disengage the engine wire harness connector (2) from the battery tray (3) and reposition the wire harness.
  6. Remove the nut (5) and two bolts (1).
  7. Remove the battery tray.
