Solenoid, WASTEGATE: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL .

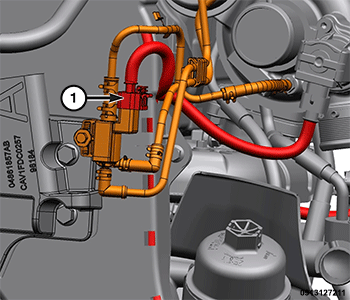

    GC0176843Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wastegate solenoid wire harness connector (1).
    GC0176791Courtesy of CHRYSLER GROUP, LLC
  4. Remove the vacuum hoses (2, 4, 5) from the wastegate solenoid (3).
  5. Remove the bolt (1) and the wastegate solenoid (3).
