Pump, Fuel, Auxiliary: Removal

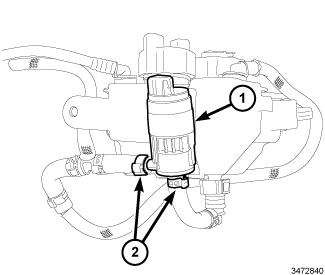

GC0153565Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the auxiliary fuel tank. Refer to TANK, FUEL, AUXILIARY, REMOVAL .
  3. Disengage the auxiliary fuel pump (1) from the auxiliary fuel tank and disconnect the fuel hoses (2) from the pump.
