Battery System (Service Information) 500 - Except Electric: Battery: Removal

Courtesy of CHRYSLER GROUP, LLC

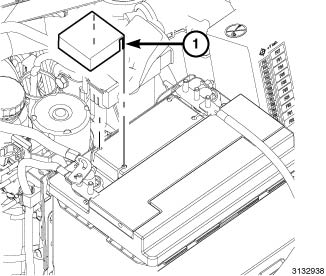

1. Remove the positive battery terminal cover (1).

   Courtesy of CHRYSLER GROUP, LLC

2. Disconnect the negative battery cable (2).
3. Disconnect the positive battery cable (1).

   Courtesy of CHRYSLER GROUP, LLC

4. Remove the battery thermo cover (1).
5. Remove the battery hold down retainer.
6. Remove the battery (2) from the vehicle.
