P1D5D-00-Sensor Ground Reference 2 Circuit: Notes

WARNING: This page is about a different variant/trim than selected.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

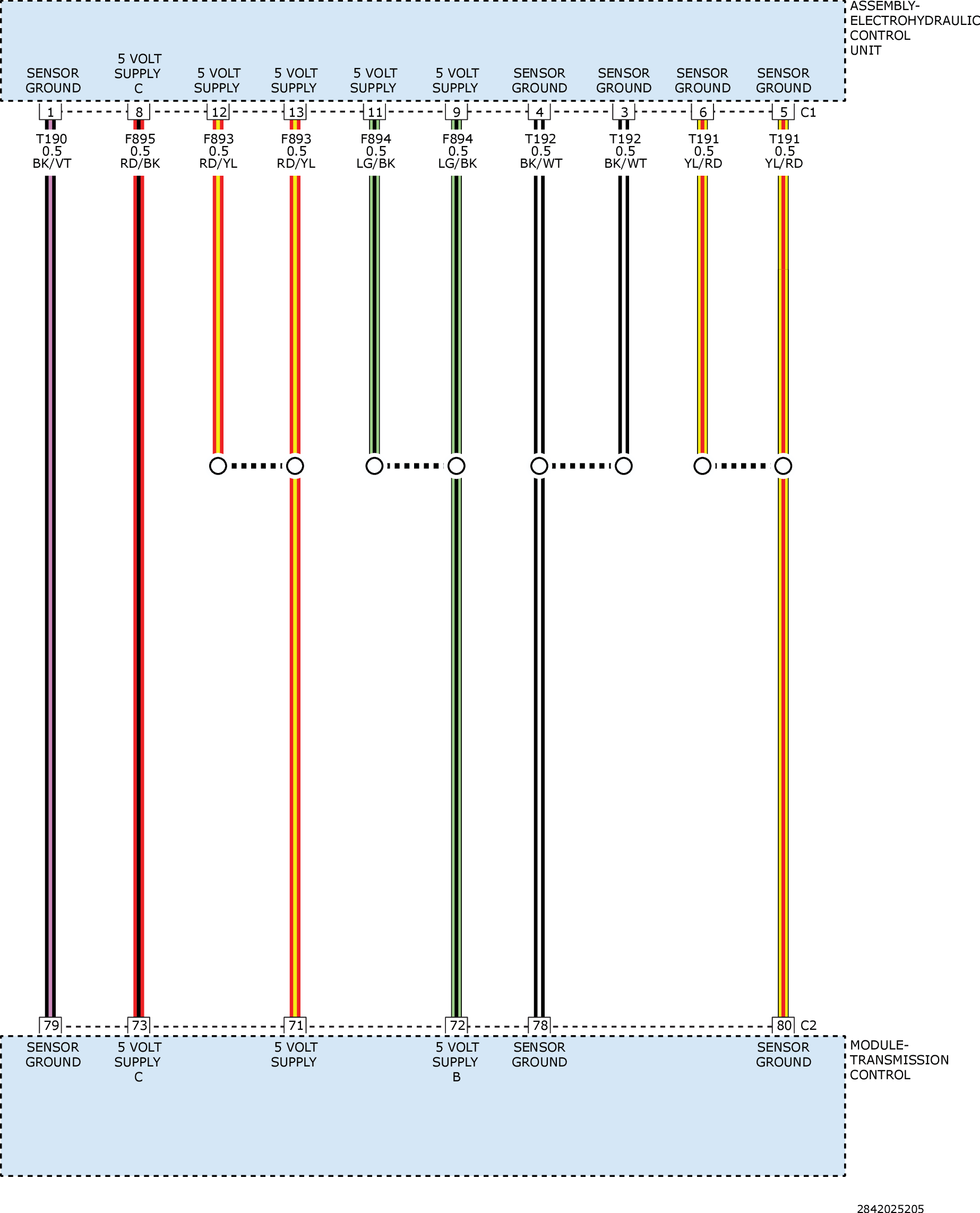

Fig 1: Control Unit 5-Volt Supply & Sensor Ground Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
