Cylinder Head
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Dodge Avenger, 1997 Chrysler Sebring, 1996 Dodge Avenger, 1996 Chrysler Sebring, and 1995 Dodge Avenger. However, it is still accessible from the selected car via links, so may be relevant.

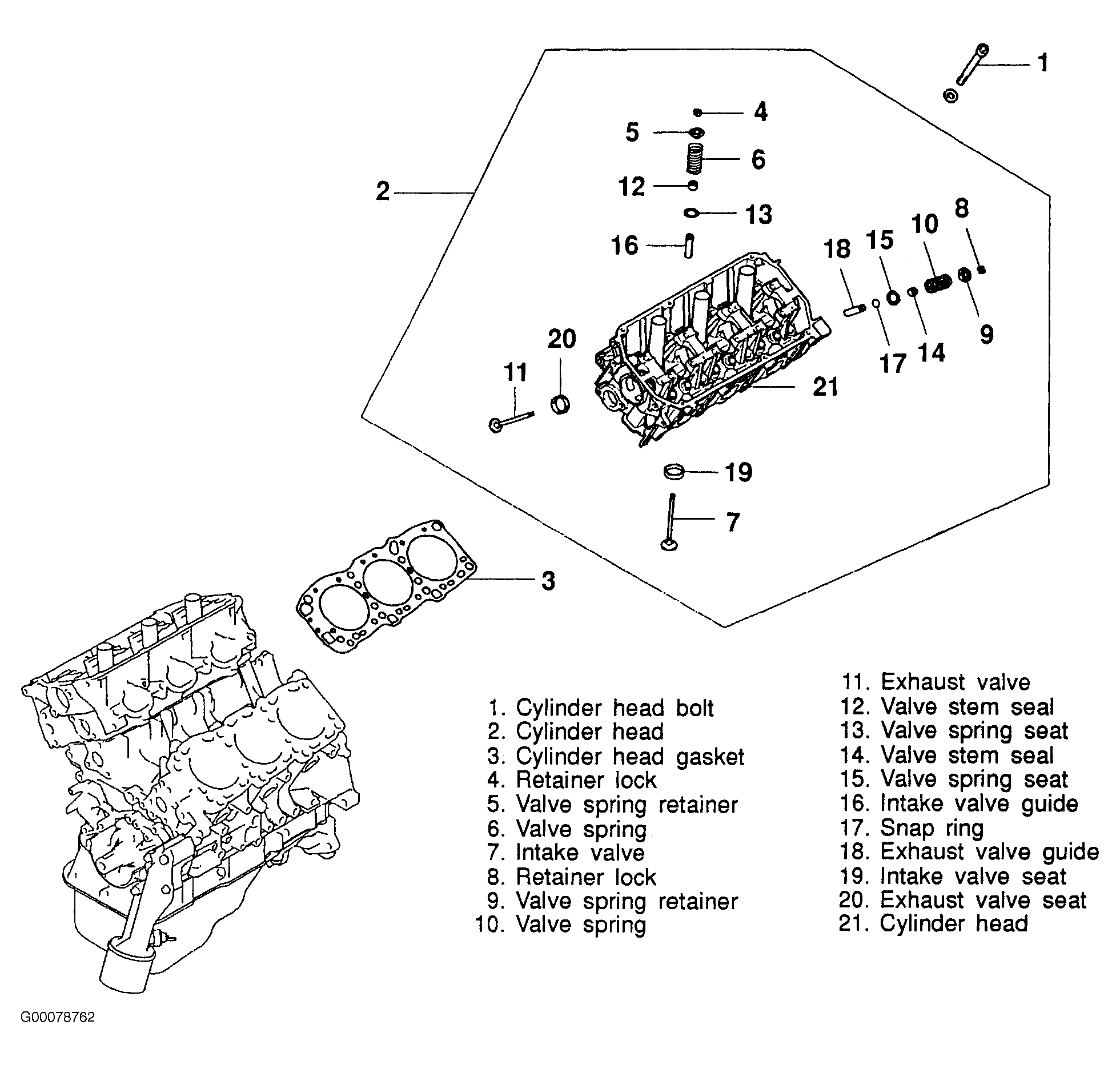

Remove valves. See appropriate ENGINE OVERHAUL PROCEDURE article in GENERAL INFORMATION. On exhaust valves, remove snap ring. See Figure. Clean head of all scale, oil, sealing compound and carbon deposits. Clean oil passages. Using compressed air, check for blockade in oil passages. Measure cylinder head for warpage and cylinder head height. See CYLINDER HEAD table under ENGINE SPECIFICATIONS. Repair or replace as necessary.
