Fluid Pressure Sensor Removal

Remove the valve body. Refer to VALVE BODY, REMOVAL .

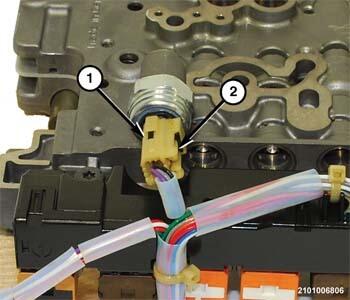

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector

2 - Lock
Release the lock on the fluid pressure sensor wire harness connector.
Pull the wire harness connector from the fluid pressure sensor.

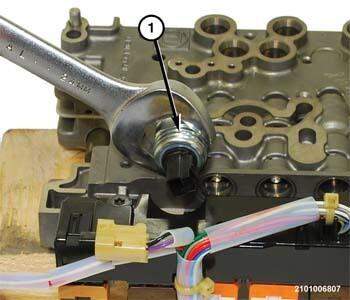

Courtesy of CHRYSLER GROUP, LLC

1 - Pressure Sensor
Using a suitable wrench, loosen the fluid pressure sensor.

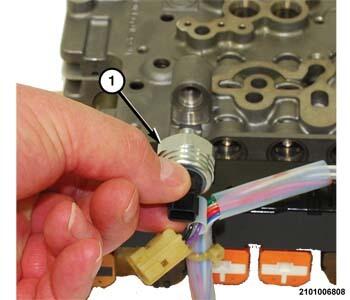

Courtesy of CHRYSLER GROUP, LLC

1 - Pressure Sensor
Remove the fluid pressure sensor from the valve body.
