Harness, Internal Wire: Removal
- Remove the valve body from the vehicle. Refer to VALVE BODY, REMOVAL .NOTE:
If the valve body is to be reused without disassembling it, store the valve body in a clean area until it is installed.

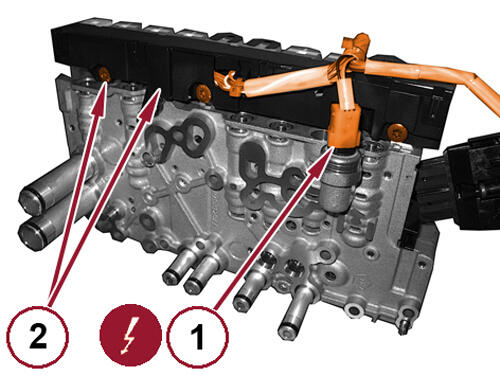

1 - Pressure Transducer 2 - Harness - Disconnect the wiring harness from the transmission fluid pressure transducer.
- Remove the fasteners from the solenoid connectors and lift the harness from the valve body.
