Stabilizer Bar, Front: Installation

  1. Install the stabilizer bar through the passenger side wheel opening. Rotate the bar as necessary until it is centered over the suspension cross-member.

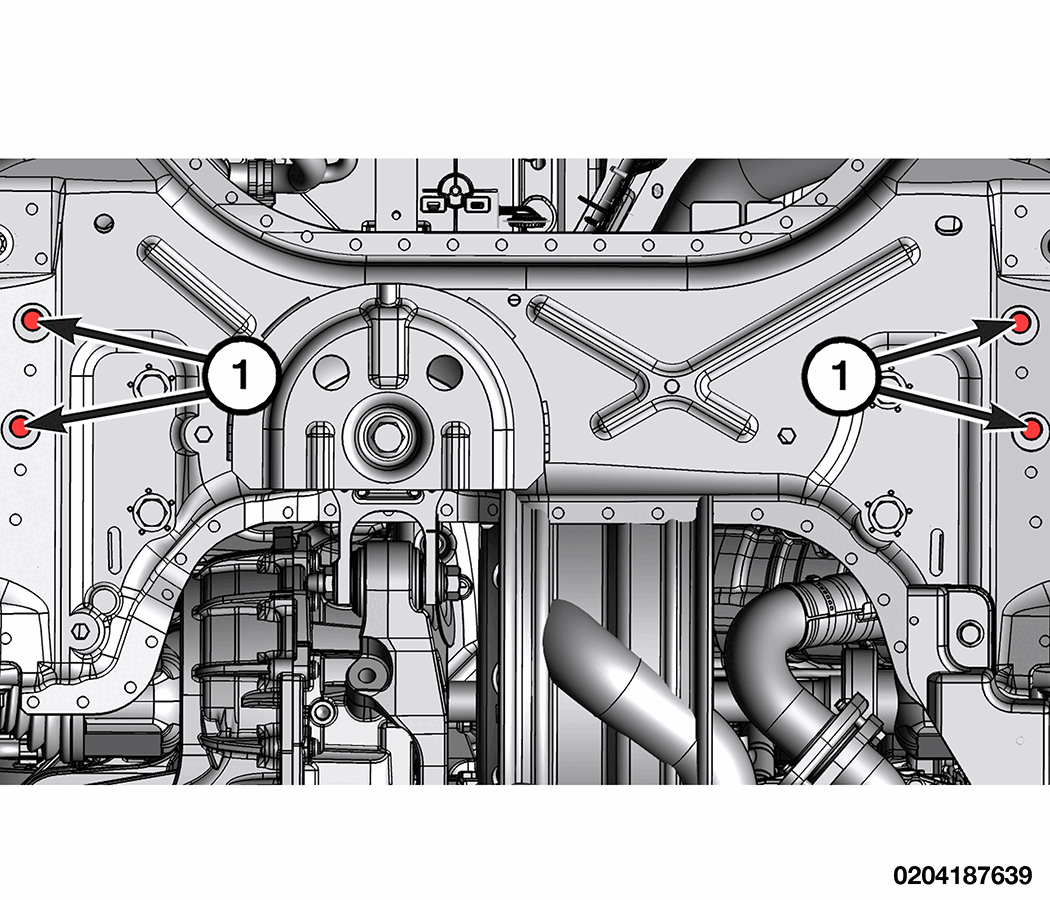

    GC0204043Courtesy of CHRYSLER GROUP, LLC
  2. Install the stabilizer bar bushing retainer bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Install both stabilizer bar links. Refer to LINK, STABILIZER BAR, INSTALLATION .
  4. Install both tire and wheel assemblies. Refer to INSTALLATION .
  5. Remove the support and lower the vehicle.
