Steering Gear

Install the outer tie rods. Refer to TIE ROD, STEERING, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

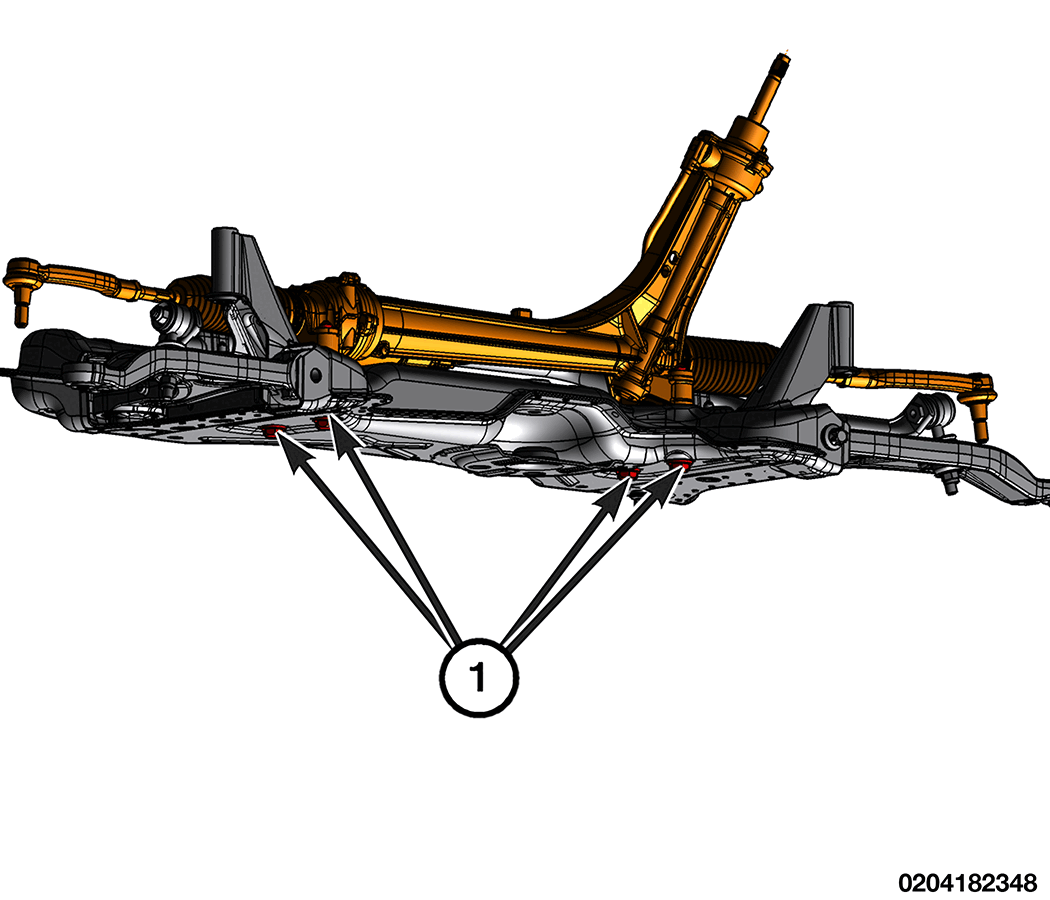

Position the steering gear to the crossmember.
Install the steering gear bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

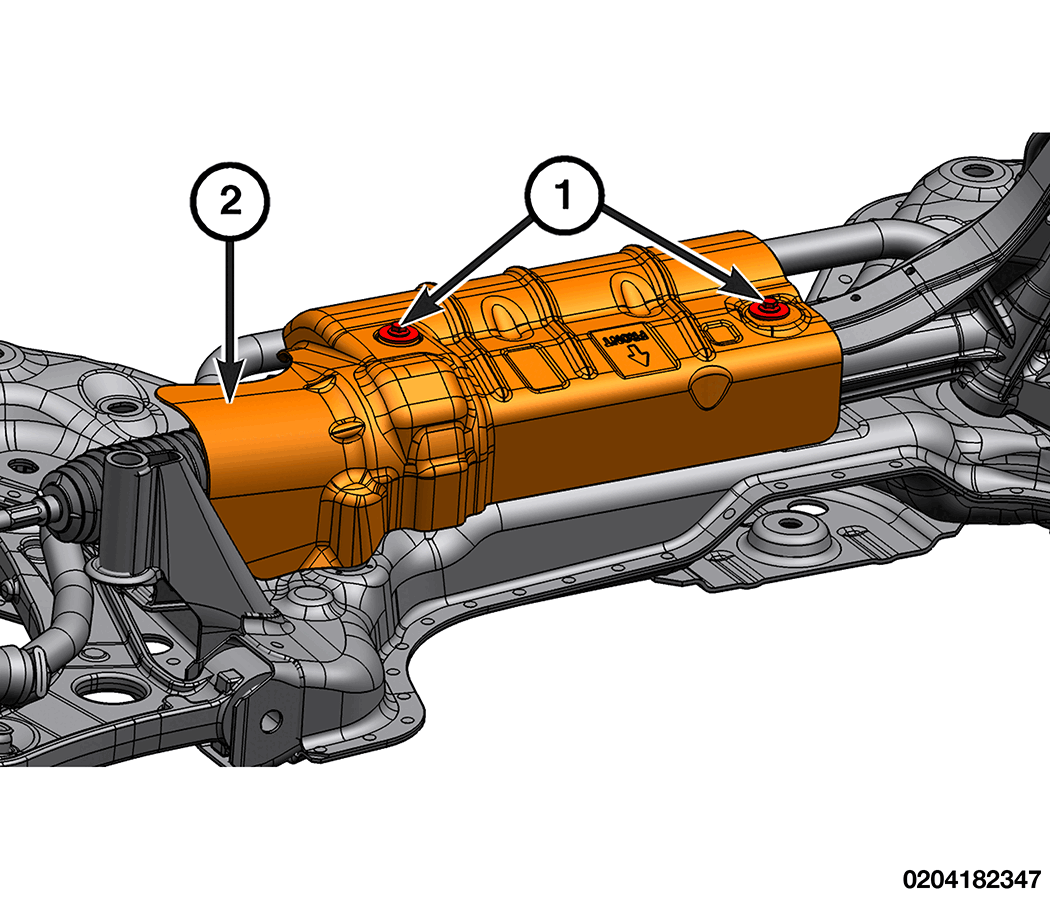

Position the steering gear heat shield (2) to the steering gear.
Install the steering gear heat shield bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Install the front crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, INSTALLATION .
Set toe to specifications. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
Perform the Electric Power Steering (EPS) steering angle calibration standard procedure. Refer to EPS - STEERING ANGLE CALIBRATION PROCEDURE .
