Sensor, Oil Temperature: Installation

GC0173767Courtesy of CHRYSLER GROUP, LLC
  1. Install the oil temperature sensor (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .

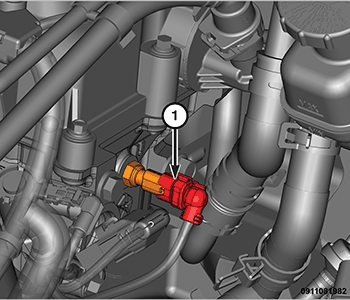

    GC0173564Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oil temperature sensor wire harness connector (1).
  3. Install the PCV hose.
  4. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
