Resonator, Air Cleaner: Installation

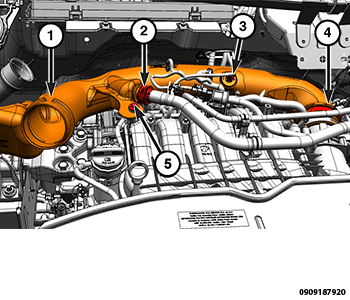

GC0204073Courtesy of CHRYSLER GROUP, LLC
  1. Install the resonator (1) to the throttle body and tighten the clamp (4) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  2. Install the bolt (5) securing the resonator to the intake manifold and tighten securely.
  3. Connect the make-up air hose (2).
  4. Connect the intake air temperature sensor (3) wire harness connector.
  5. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
