Insulator, Engine Mount, Right: Installation

Courtesy of CHRYSLER GROUP, LLC

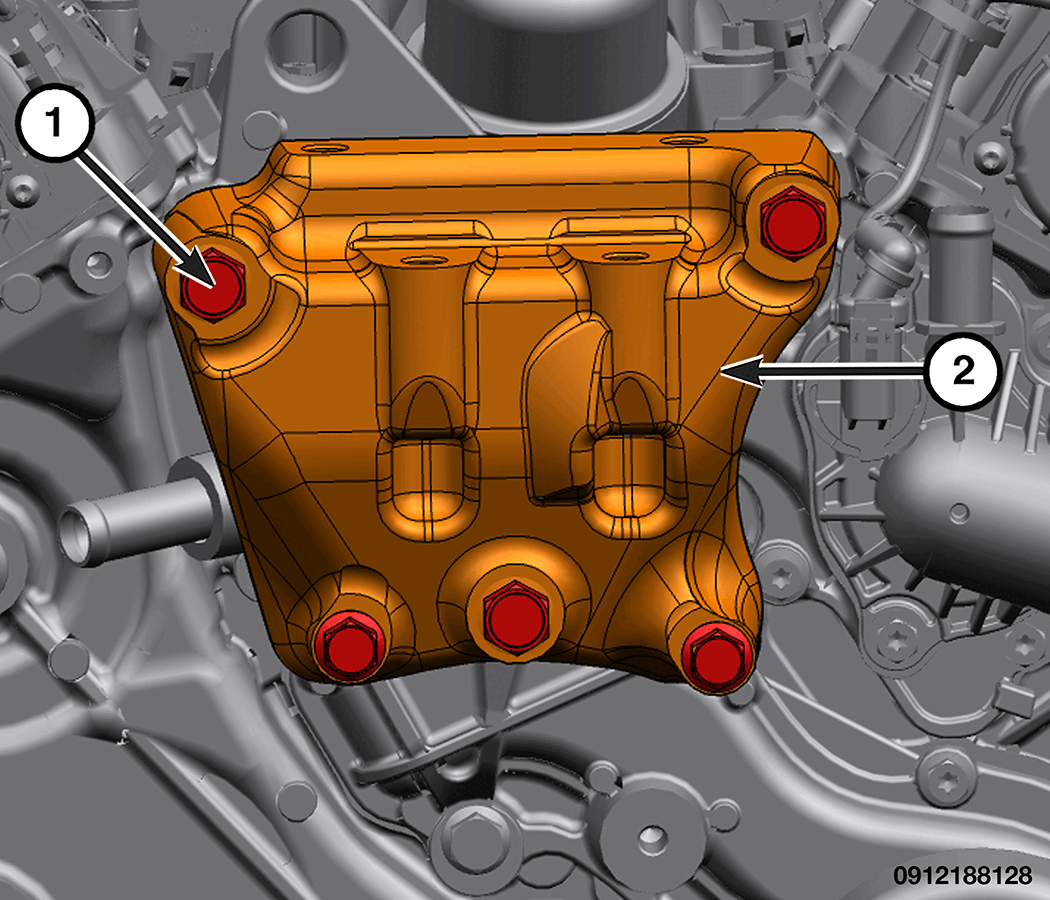

1. If removed, install the right engine mount bracket (2) and tighten right engine mount bracket bolts (1) to:
   • Tighten M10 bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS .
   • Tighten M8 bolt to the proper specifications. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

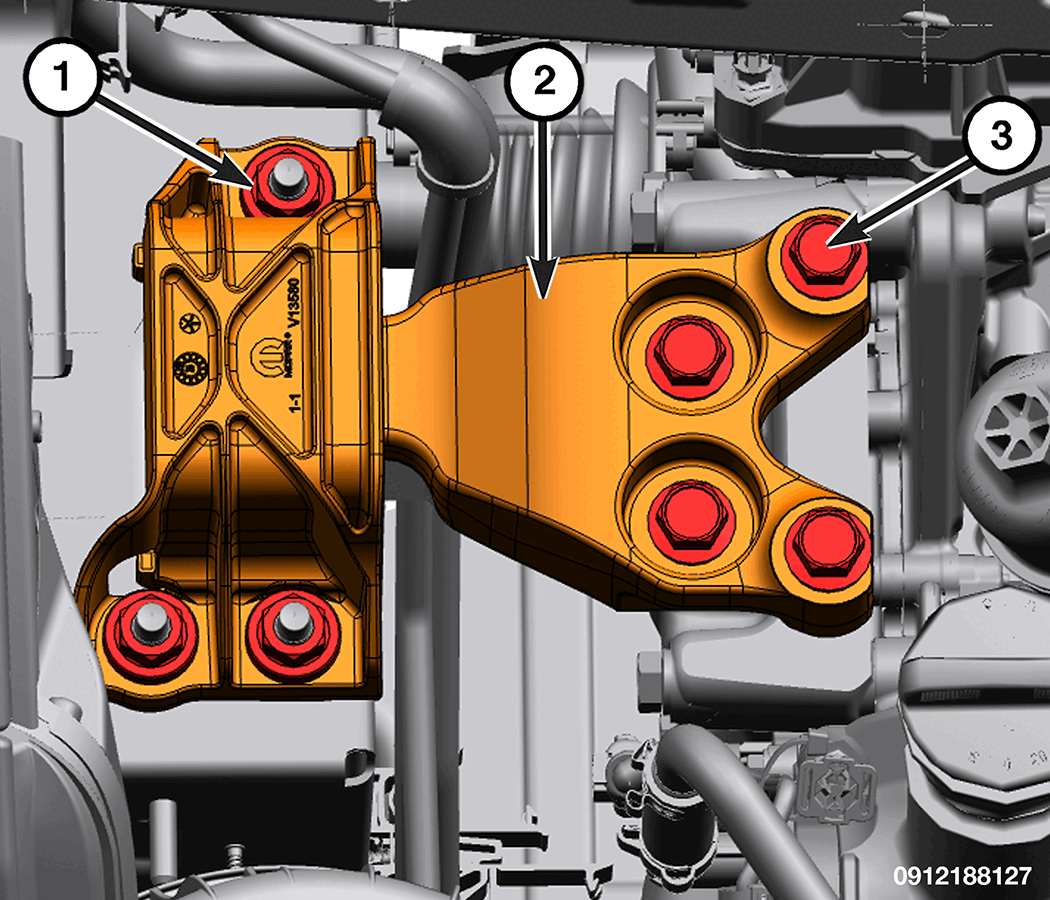

2. Install the right engine mount (2) and tighten the three right engine mount nuts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
3. Install the four engine mount to engine bracket bolts (3) and tighten the engine mount to engine bracket bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS .
4. Remove the floor jack.
5. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
