Insulator, Engine Mount, Rear: Installation

Courtesy of CHRYSLER GROUP, LLC

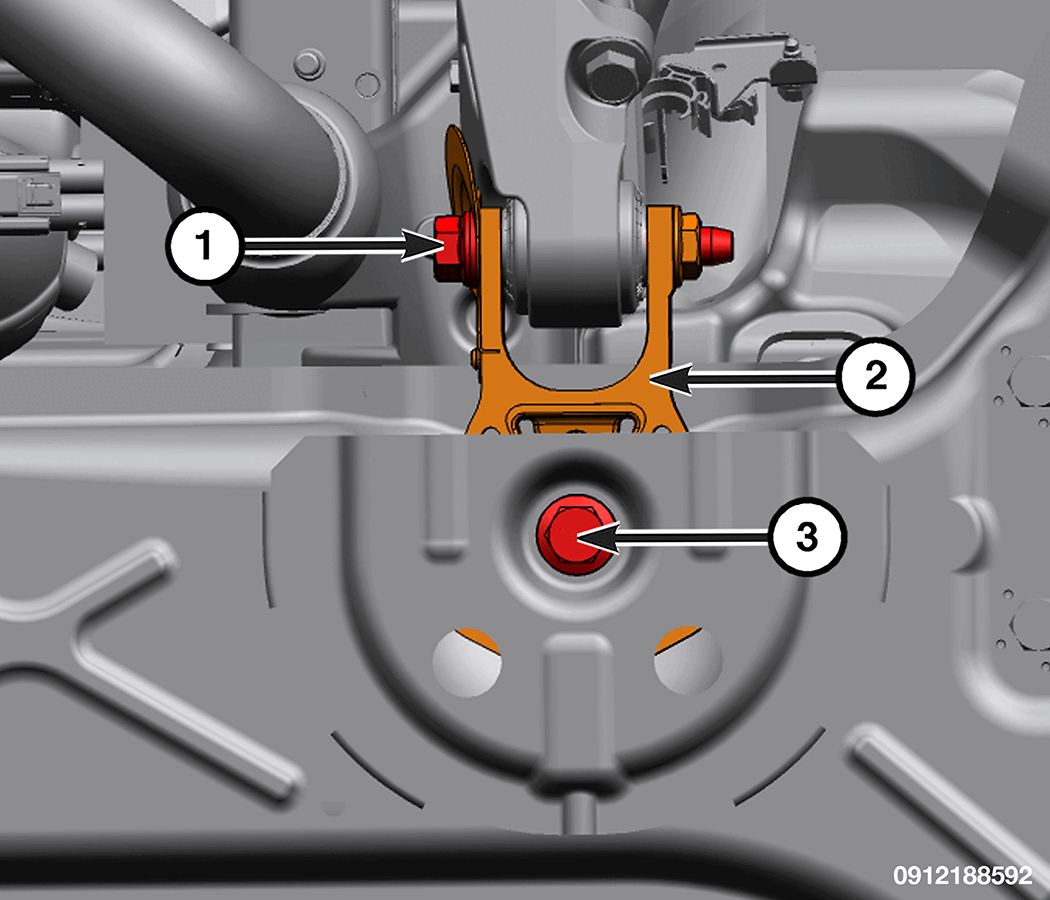

1. Install the rear transmission strut isolator (2) to the crossmember and tighten rear transmission strut isolator to crossmember M16 bolt (3) finger tight.
2. Install the rear transmission strut isolator to rear transmission mount bracket M16 bolt/nut (1) and tighten the rear transmission strut isolator to rear transmission mount bracket M16 bolt/nut (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
3. Tighten the rear transmission strut isolator to crossmember M16 bolt (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
4. The following steps are only necessary for servicing the engine mount bracket.

   Courtesy of CHRYSLER GROUP, LLC

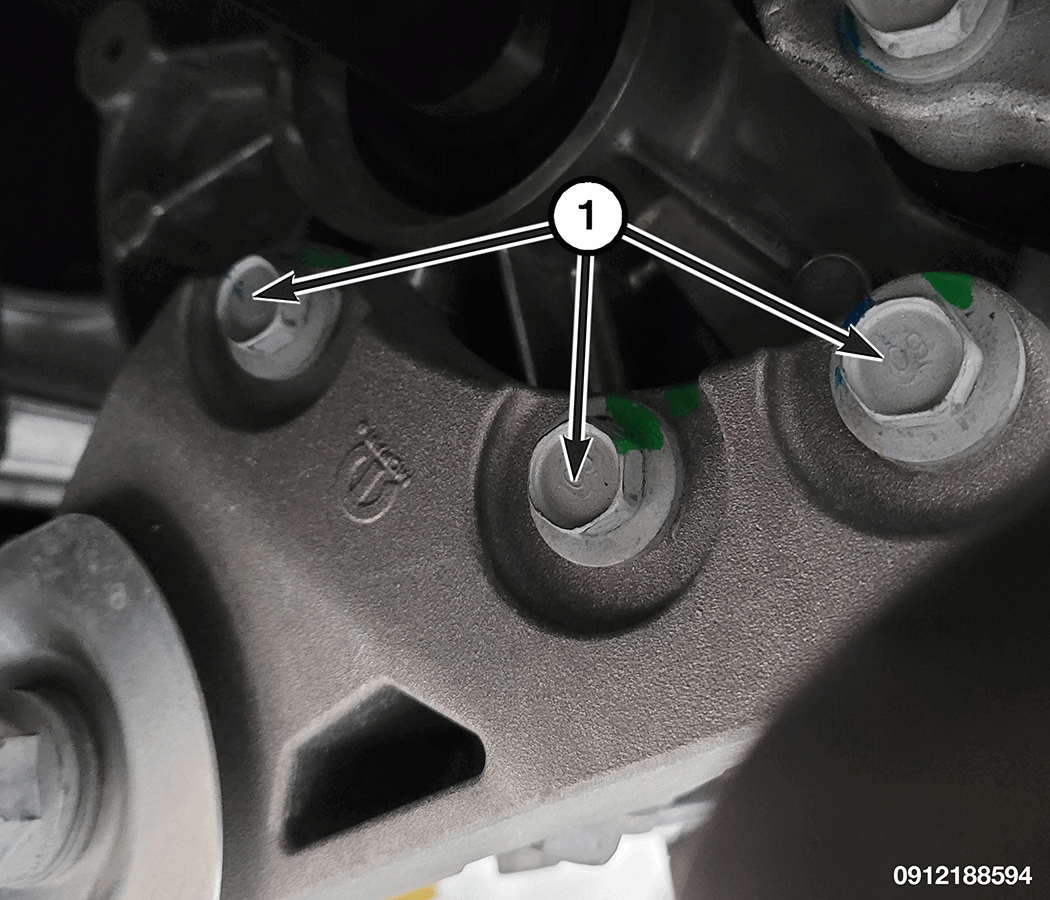

5. If necessary, install the rear transmission mount bracket and tighten the rear transmission mount bracket to transmission bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

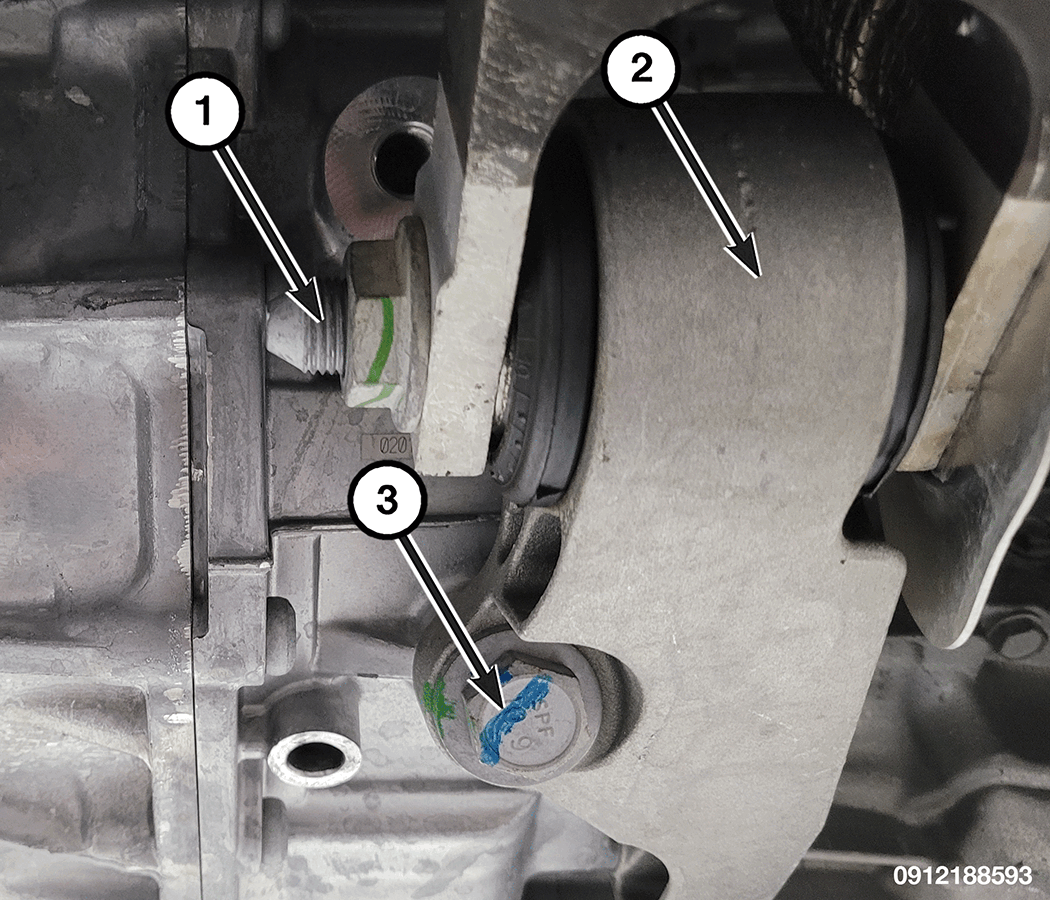

6. If necessary, install the rear transmission mount bracket to transmission M14 bolt and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
7. If necessary, install the rear transmission strut isolator to rear transmission mount bracket M16 bolt/nut (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
8. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
9. Remove the support and lower the vehicle.
