Belly Pan: Installation

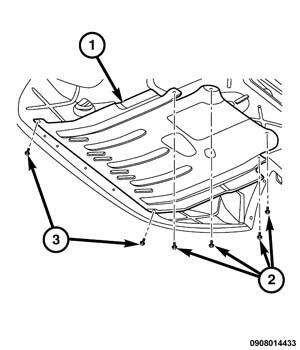

GC0160317Courtesy of CHRYSLER GROUP, LLC
  1. Position the front belly pan (1) to the underside of the vehicle.
  2. Install the fasteners (3) that secure the front belly pan (1) to the underside of the vehicle's lower crossmember. Tighten the belly pan front fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Install the fasteners (2) that secure the front belly pan (1) to the underside of the vehicle's lower crossmember. Tighten the belly pan rear fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

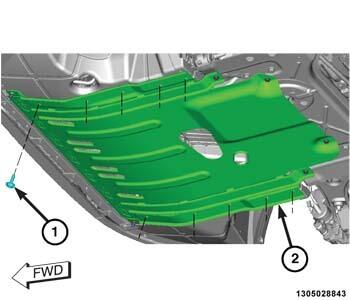

    GC0160249Courtesy of CHRYSLER GROUP, LLC
  4. Install the fasteners (1) that secure the belly pan (2) to the side shield.
  5. Tighten the fasteners (1) securely.
  6. Repeat on the opposite side.
  7. Remove the support and lower the vehicle.
