Seal, Crankshaft Oil, Front: Removal

GC0144224Courtesy of CHRYSLER GROUP, LLC
  1. Remove the crankshaft vibration damper. Refer to DAMPER, VIBRATION, REMOVAL .
    NOTE:

    Take note of the front oil seal orientation prior to removal.

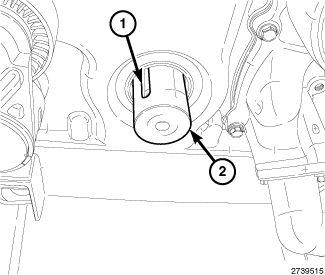

  2. Install the sleeve (2) from Seal Remover around the flywheel key (1) and onto the nose of the crankshaft.

    (Special tool #8511, Remover, Seal)

    GC0144225Courtesy of CHRYSLER GROUP, LLC

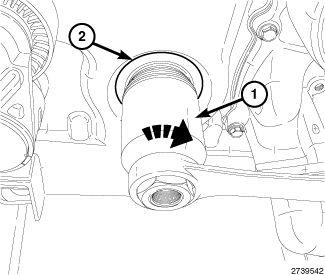

  3. Screw Seal Remover (1) into the front crankshaft oil seal (2).

    (Special tool #8511, Remover, Seal)

    GC0144226Courtesy of CHRYSLER GROUP, LLC
  4. Install the extractor screw (2) into the Seal Remover (1). Hold the seal remover stationary and tighten the extractor screw against the sleeve until the front crankshaft oil seal (3) is removed from the engine timing cover.

    (Special tool #8511, Remover, Seal)
