Engine Block: Crankshaft: Removal

NOTE:

To remove the crankshaft from the engine, the engine must be removed from the vehicle.

Remove the engine. Refer to REMOVAL .
Remove the timing chain and sprockets. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL .
Remove the rear crankshaft oil seal. Refer to SEAL, CRANKSHAFT OIL, REAR, REMOVAL .
Remove the engine oil pump. Refer to PUMP, ENGINE OIL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

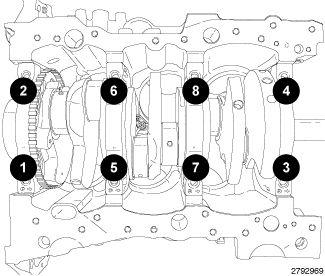

Remove the eight main bearing cap bolts from the windage tray in the sequence shown and remove the windage tray (1).
Remove the Crankshaft Position (CKP) sensor. Refer to SENSOR, CRANKSHAFT POSITION, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
DO NOT use a number stamp or a punch to mark connecting rods or caps, as damage to connecting rods could occur.

NOTE:
Connecting rods and bearing caps are not interchangeable and should be marked before removing to ensure correct reassembly.
Mark connecting rod and bearing cap positions (1) using a permanent ink marker or scribe tool.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical V6 engine configuration shown.

CAUTION:
Care must be taken not to damage the fractured rod and cap joint face surfaces, as engine damage may occur.
Remove the connecting rod cap bolts (5) and the connecting rod caps (4). Discard the cap bolts.
Remove the plastic guide plates (3) from the Guide Pins (7) and install the Guide Pins to the connecting rod.
(Special tool #8189, Guide Pins)

CAUTION:
Care must be taken not to nick crankshaft journals, as engine damage may occur.
Push the connecting rod and piston into the cylinder until the connecting rod is clear of the crankshaft journal. Remove the guide pins. Repeat this procedure at each cylinder until all of the connecting rods are clear of the crankshaft.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical V6 engine configuration shown.

Remove the main bearing cross bolts in the sequence shown.

CAUTION:
DO NOT use a number stamp or a punch to mark main bearing caps, as damage to main bearings could occur.

NOTE:
Main bearing caps are not interchangeable and are marked to insure correct assembly.
Mark the main bearing cap positions using a permanent ink marker or a scribe tool.

Fig 1: Main Bearing Cap Bolts Loosening Sequence
Courtesy of CHRYSLER GROUP, LLC
Remove the eight main bearing cap bolts in the sequence shown and remove the main bearing caps.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not rest the crankshaft on the target wheel (1). Damaged or bent target wheel teeth will destroy the target wheels ability to correctly relay crankshaft position to the crankshaft position sensor.
Remove the crankshaft from the engine block.
If required, remove the four bolts (2) and the target wheel (1). Discard the four bolts.
