Bank 1 Solenoid 2

  1. Inspect the Variable Valve Lift (VVL) solenoid O-ring seal and replace if necessary.

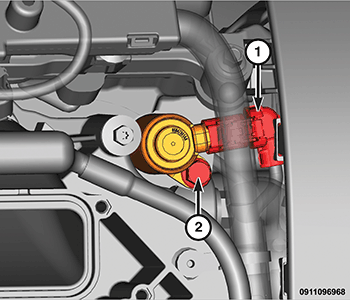

    GC0173650Courtesy of CHRYSLER GROUP, LLC
  2. Insert the VVL solenoid into the cylinder head.
  3. Install the retaining bolt (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  4. Connect the wire harness connector (1) to the VVL solenoid.
  5. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
