Muffler Heat Shield

  1. Remove the exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL .

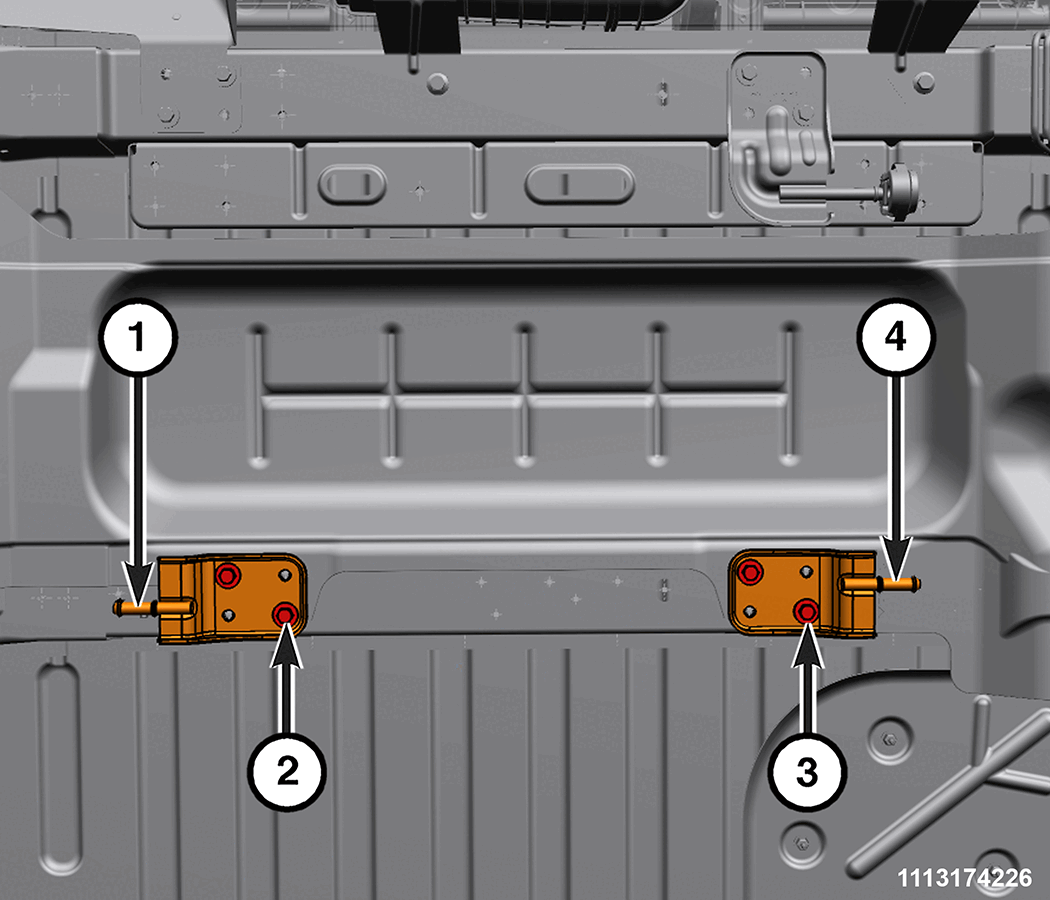

    GC0199649Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (2) and the exhaust isolator bracket (1).
  3. Remove the bolts (3) and the exhaust isolator bracket (4).

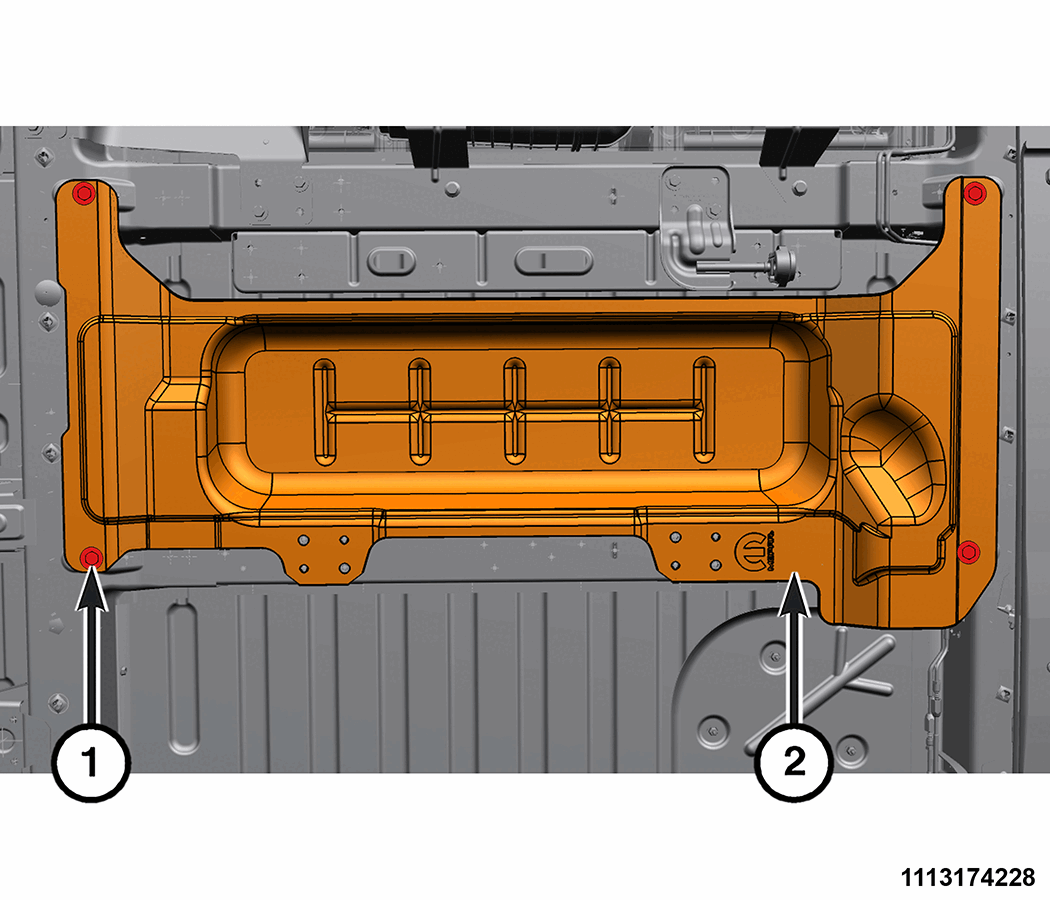

    GC0199665Courtesy of CHRYSLER GROUP, LLC
  4. Remove the rivits (1) and the exhaust muffler heat shield (2).
