Antenna, Long-Term Evolution 2 (LTE2): Installation

Courtesy of CHRYSLER GROUP, LLC

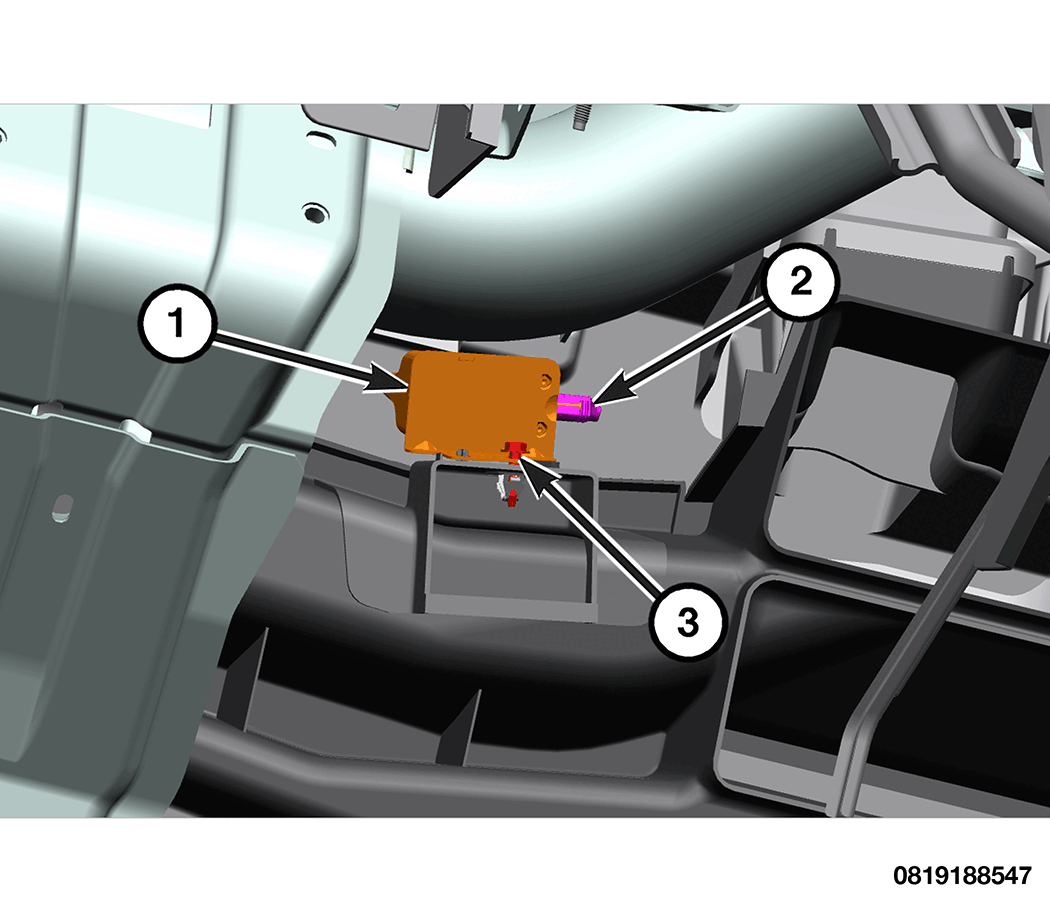

1. Position the LTE2 antenna (1) to the instrument panel cover.
2. Connect the antenna connector (2).
3. Install the fastener (3) and tighten securely.
4. Install the driver side air duct. Refer to DUCT, FLOOR DISTRIBUTION, INSTALLATION .
5. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
