Duct, Floor Distribution: Installation

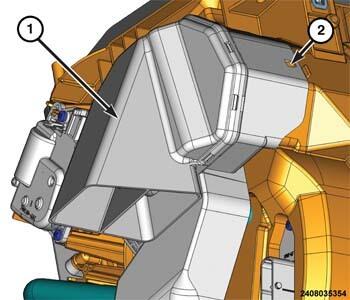

GC0160389Courtesy of CHRYSLER GROUP, LLC
  1. Engage the left floor distribution duct (1) to the HVAC housing (2).

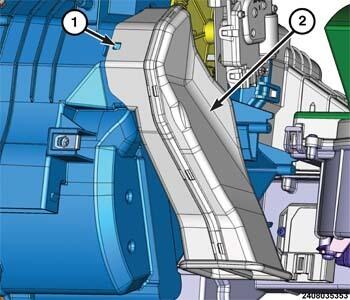

    GC0160255Courtesy of CHRYSLER GROUP, LLC
  2. Engage the right floor distribution duct to the HVAC housing (1).
