Indicators, Instrument Cluster: Description
The Instrument Panel Cluster (IPC) features a number of soft indicators, which are located within the electronic display unit in the center of the cluster. The soft indicators are discussed in further detail within the message center service information. Refer to CENTER, ELECTRONIC VEHICLE INFORMATION, DESCRIPTION . Some of the indicators are automatically configured when the IPC is connected to the electrical system of the vehicle for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each IPC may have provisions for indicators to support every available option, the configurable indicators will not function in vehicles that do not have the equipment that an indicator supports.

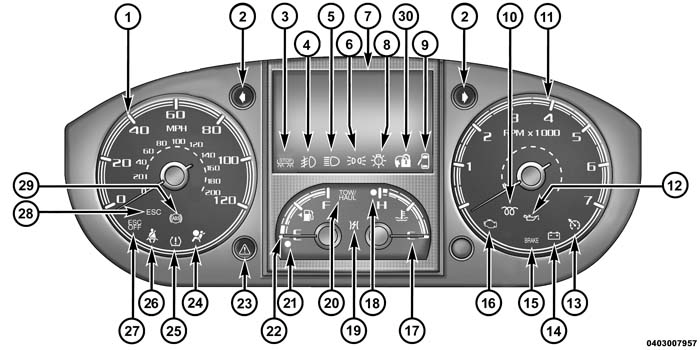

The IPC includes provisions for the following indicators:
- Turn Signal (Right and Left) Indicators (2)
- Stop Lamp Failure Indicator (3)
- Front Fog Lamp Indicator (4) - with optional front fog lamps only
- High Beam Indicator (5)
- Park/Headlight ON Indicator (6)
- External Lamp Failure Indicator (8)
- Door Ajar Indicator (9)
- Wait-To-Start Indicator (10) - with diesel engine only
- Low Oil Pressure Indicator (12)
- Cruise Indicator (13)
- Charging Indicator (14)
- Brake Indicator (15) - text only for the U.S. market, icon only for markets outside the U.S.
- Malfunction Indicator Lamp (16) - Malfunction Indicator Lamp (MIL)
- Engine Coolant Temperature Indicator (18)
- Electronic Throttle Control Indicator (19) - Electronic Throttle Control (ETC)
- TOW/HAUL Indicator (20)
- Low Fuel Indicator (21)
- Generic Failure Indicator (23)
- Airbag Indicator (24)
- Tire Pressure Monitor Indicator (25) - Tire Pressure Monitor (TPM)
- Seat Belt Indicator (26)
- Electronic Stability Control (ESC) Off Indicator (27)
- Electronic Stability Control (ESC) Activation/Malfunction Indicator (28)
- Anti-Lock Brake (ABS) Indicator (29)
- Vehicle Security Indicator (30)
These indicators and LED units are serviced only as a unit with the IPC. If damaged or ineffective, the entire IPC assembly must be replaced.
