Front Door Quarter Glass

Courtesy of CHRYSLER GROUP, LLC

Before proceeding with the following repair procedure, review all warnings and cautions. Refer to STATIONARY GLASS, WARNING .
Remove the mirror flag trim. Refer to FLAG, MIRROR, REMOVAL .
Remove the mirror assembly from door. Refer to MIRROR, OUTSIDE REARVIEW, GLASS, REMOVAL .
Using an assistant and a wire-type windshield cut-out tool, cut and separate the urethane adhesive securing the glass to the glass fence.

Courtesy of CHRYSLER GROUP, LLC

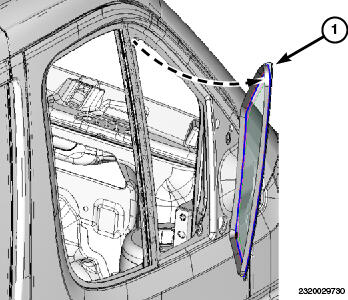

Separate the quarter window (1) from the door.
