Flag, Mirror: Removal

Courtesy of CHRYSLER GROUP, LLC

NOTE:

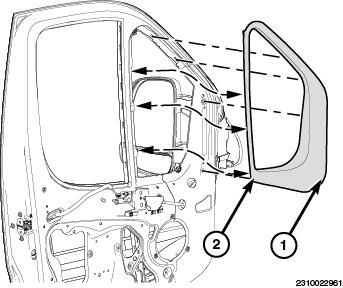

Left side shown in illustration. Right side similar.

Using trim stick trim stick or equivalent, disengage the four front retaining clips (1) that secure the side view mirror flag.
(special tool #C-4755, Trim Stick)
Pull the mirror flag trim forward and release the three rear clips (2) and remove the trim.
