Plate, Scuff, Front Door Sill: Removal

  1. Remove the lower B-pillar trim panel. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
    GC0203864Courtesy of CHRYSLER GROUP, LLC

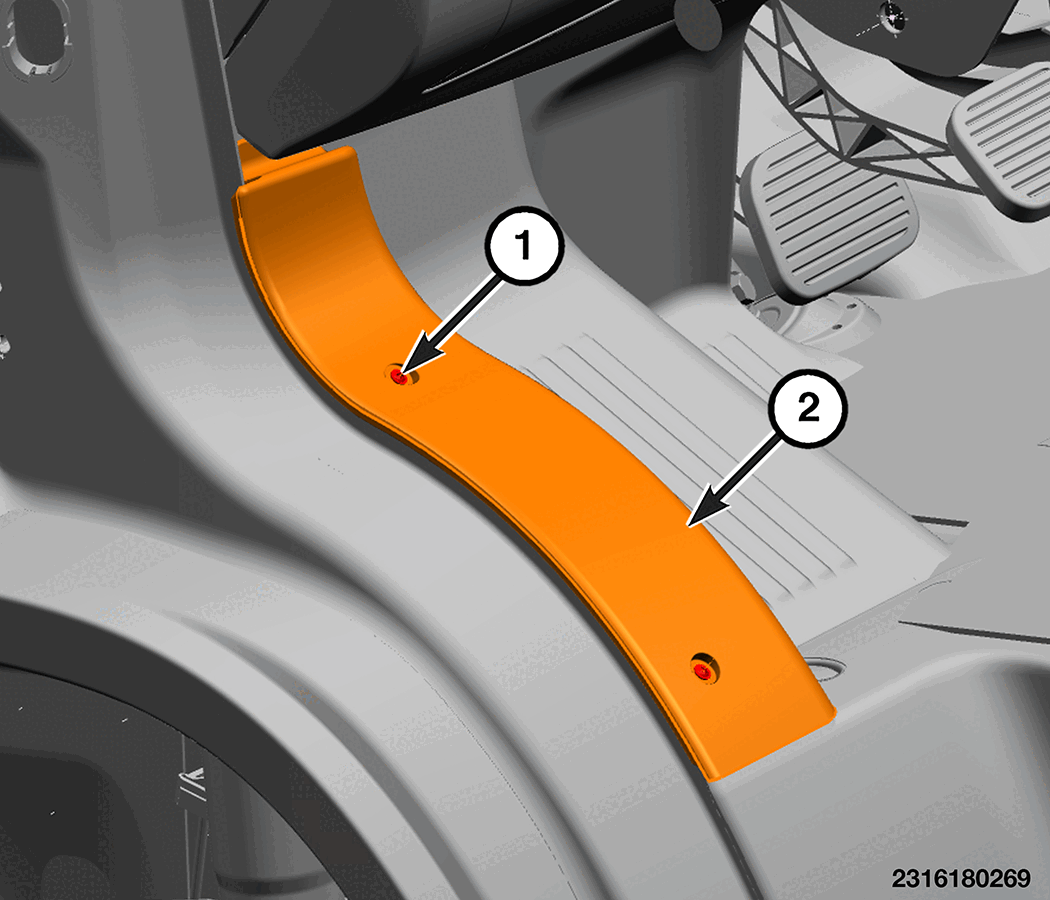

  2. Remove the fasteners (1) then remove the trim (2).
    GC0160493Courtesy of CHRYSLER GROUP, LLC

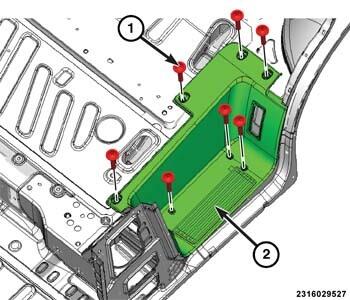

  3. Remove the fasteners (1).
  4. Remove the door sill trim (2).
