Body - Interior & Exterior (2 Of 2): Interior: Carpet: Removal

  1. Remove the front seats. Refer to SEAT, FRONT, REMOVAL .
  2. Remove the door sill plates. Refer to PLATE, SCUFF, FRONT DOOR SILL, REMOVAL .
  3. Separate the steering shaft at the bottom of the steering column. Refer to COLUMN, REMOVAL .
  4. Remove the instrument panel center lower panel.

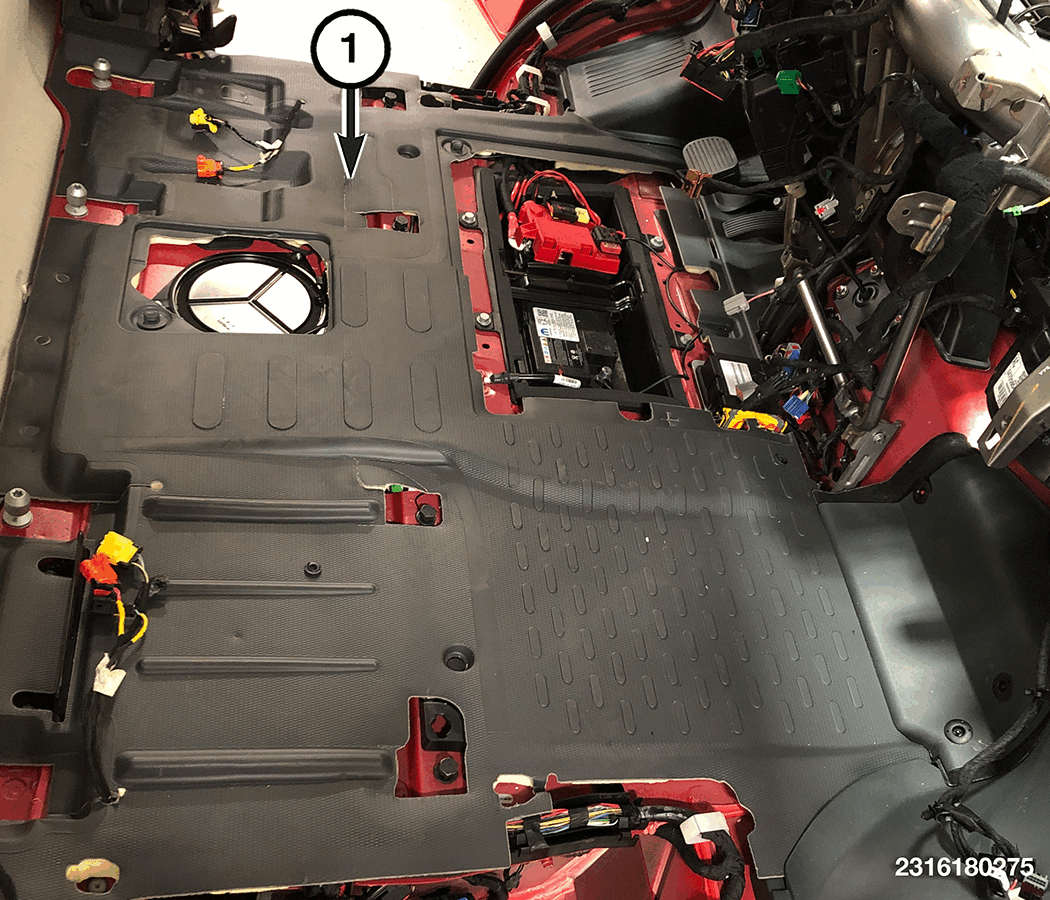

    GC0204055Courtesy of CHRYSLER GROUP, LLC
  5. Remove the floor covering (1).
