Hinge, Hood: Installation

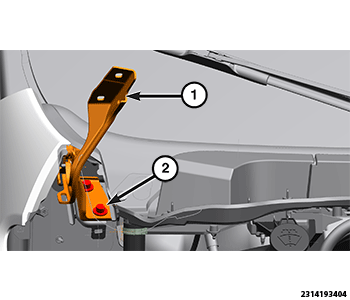

GC0206936Courtesy of CHRYSLER GROUP, LLC
  1. Position the hood hinge (1) to the body.
  2. Loosely install the bolts (2).
  3. Align hinge with installation reference marks made previously and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

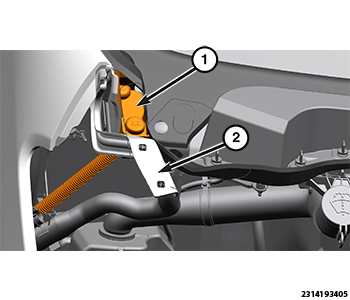

    GC0206925Courtesy of CHRYSLER GROUP, LLC
  5. Install the cowl cover drains (1).
  6. Install the cowl panel cover. Refer to COVER, COWL PANEL, INSTALLATION .
  7. Install the hood. Refer to HOOD, INSTALLATION .
